chemtechnol Ind J, Volume: 12( 1)
Urchin-Flower like Hierarchical LaNiO3 Spheres: Structural Characteristics and Photocatalytic Activity
- Song W, College of Chemistry and Chemical Engineering, Qiqihar University Qiqihar, P.R. China, Tel: 0086-452-2738469; E-mail: [email protected]
Received: January 06, 2017; Accepted: June 24, 2017; Published: June 28, 2017
Citation: Song W, Ma S, Sun L, et al. Urchin-Flower like Hierarchical LaNiO3 Spheres: Structural Characteristics and Photocatalytic Activity. Chem Technol Ind J. 2017;12(1):111
Urchin-flowerlike hierarchical LaNiO3 spheres were synthesized by a modified coprecipitation method from vesicle solutions. The LaNiO3 spheres’ structure and catalytic activity were elaborately studied by varying the mole ratio of La and Ni. Both samples were characterized by XRD, SEM, TEM and XPS, the results revealed a variety of urchin-flowerlike hierarchical LaNiO3 spheres with different La/Ni molar ratios (n(La): n (Ni)=1:1, 2:1, 3:1, 4:1) were prepared by self-assembly method, and all the catalysts provided typical diffraction patterns for the LaNiO3 rhombohedral structure characteristics. Urchin-flowerlike hierarchical LaNiO3-3 spheres (~20 µm to 30 µm diameter) shows a typical urchin-flowerlike hierarchical sphere structure, which was composed of ~100-nm-thickultrathin sheets. The LaNiO3-3 has a better morphology, crystal configuration, photocatalytic activity (95.63%) for RB under ultraviolet light.
Urchin-flowerlike; LaNiO3 spheres; Hierarchical
Organic compounds are widely dispersed and likely to occur as environmental hazards in water. Among different organic pollutants, dyes have been designated as priority pollutants by many countries, because of their acute toxicity and long persistence. Thus, they must be degraded to below environmentally accepted levels before safe disposal to public health. Three dimensional nanomaterials attract much attention in recent years. Preparing three dimensional nanomaterials with specific surface area, good chemical activity and adsorption selectivity properties.
Three-dimensional metal oxide micro-/nanostructures have received much attention because of their potential applications in the fields of catalysis, electrical, water treatment. The self-assembly of inorganic nanostructured building blocks into 3D ordered hierarchical nanostructures is fascinating because variation of the arrangements of the building blocks provides a method to tune the properties of the material. Rare earth nanomaterials [1-3] with specific surface area, good chemical activity and adsorption selectivity excellent properties has potential applications in fluorescent, hydrogen storage, catalysis and other fields .
In recent years, many synthesis efforts have focused on using vesicles with special structures and their unique self-assembling properties as templates to prepare novel structural materials. Zou YC had fabricated BaZrO3 hollow microspheres by a simple reflux method . Shanmugasundaram A had fabricated hierarchical mesoporous In2O3 with enhanced CO sensing and photocatalytic performance .
The aim of this work was to synthesize urchin-flowerlike  hierarchical LaNiO3 [8-10] spheres by a modified coprecipitation method from ultrahigh dilute (vesicle) solutions [11,12], and to study their structural characteristics. The LaNiO3 spheres’ structure and catalytic activity were elaborately studied by varying the mole ratio of La and Ni. This method is attractive because of its relative simplicity, environmental friendliness, affordability, and suitability for large-scale production. Various characterization techniques, namely scanning electron microscopy (SEM), X-ray diffraction (XRD), transmission electron microscopy (TEM), and temperature-programmed reduction (TPR), were used to characterize the physical and chemical properties of the synthesized materials [13-16].
Materials. All chemicals were of analytical grade and were used without further purification. Lanthanum nitrate (La(NO3)3·6H2O), nickel nitrate (Ni(NO3)2·6H2O), NaOH, hexadecyl trimethyl ammonium bromide (CTAB), and sodium dodecyl benzene sulfonate (SDBS) were purchased from Tianjin Kemiou Chemical Reagent Co., Ltd.
Synthesis of urchin-flowerlike hierarchical LaNiO3 spheres. A solution of vesicles was obtained by dissolving surfactants CTAB and SDBS (CTAB: SDBS=1:2 molar ratio; 0.028 mol/L surfactant) in twice-distilled water at 30°C for 18 h. The urchin-flowerlike hierarchical LaNiO3 spheres were synthesized by a modified coprecipitation method from an ultrahigh dilute (vesicle) solution. 0.649 g La(NO3)3·6H2O and Ni(NO3)2·6H2O (n(La):n(Ni)=1:1, 2:1, 3:1, 4:1) were dissolved in 15 and 10 mL of deionized water, respectively. These solutions were added to 75 mL of the vesicle solution. A precipitate was obtained by the drop wise addition of NaOH solution until the solution pH reached 8.5. The resultant light-blue slurry was decanted, filtered, and washed several times with twice-distilled water to remove anion impurities. The collected precipitate was oven-dried at 80 K for 12 h, crushed using an agate mortar, and then calcined at 750 K for 5 h at 5 K min-1 in air to obtain the urchin-flowerlike hierarchical LaNiO3-1 (LaNiO3-2, LaNiO3-3, LaNiO-4) spheres (Scheme 1).
The morphology was studied by SEM on a JEOL JSM-6360 electron microscope. TEM was performed with an FEI-TECHNI-G2 instrument at an operating voltage of 200 kV. XRD analysis was performed using a MAC Science MXP18 diffractometer with Cu Kα1 radiation (λ=1.5405 Å) at 40 kV and 30 mA for 2θ from 10-80°C at 10°C/min to identify the amorphous structure. The surface composition and surface electronic state were analyzed by X-ray photoelectron spectroscopy (XPS) using a Kratos Axis Ultra DLD instrument at 160 eV pass energy. Al Kα radiation was used to excite the photoelectrons. The binding energy value of each element was corrected using C 1s=284.6 eV as a reference. TPR experiments were carried out in a fixed-bed reactor. Sample (50 mg) was loaded, and 4.2% H2/N2 reduction gas (30 mL/min) was introduced. The temperature of the reactor was raised linearly from room temperature to 850°C at 10°C/min using a temperature controller. For the catalysis study, 60 mL of 30 mg/L Reactive Brilliant Red (RB) solution was taken in a beaker and 20 mg of LaNiO3 was added to it. The resulting solution was stirred while keeping away from the light source and then the solution was centrifuged to separate the LaNiO3.
Results and Discussion
X-ray diffraction analysis
XRD measurements were performed to identify the chemical states of the urchin-flowerlike hierarchical LaNiO3 spheres. Figure. 1 gives the XRD spectrum of the LaNiO3 spheres. Several significant diffraction peaks appeared at 2θ?23.32°, 32.83°, 39.38°, 47.15°, 52.04°, 52.61°, 58.64°, 68.96°, 78.89° and the resulting diffraction peaks can be indexed to characteristic diffractions from (101), (110), (021), (202), (211), (113), (122), (220), (312) of LaNiO3 (JCPDF No. 034-1028) [17,18]. The sample was typically of a LaNiO3 perovskite structure with a rhombohedral crystal system . Nanocrystalline La2O3was synthesized by a modified coprecipitation method from ultrahigh dilute (vesicle) solution, using La(NO3)3·6H2O as raw material and NaOH as precipitant. Several significant diffraction peaks appeared at 2θ?26.61°, 29.08°, 29.95°, 48.92° and the resulting diffraction peaks can be indexed to characteristic diffractions from (100), (002), (021), (101), (110) of La2O3 (JCPDF No. 005-0602). These results indicate that the chemical state of the LaNiO3 is the same in the support.

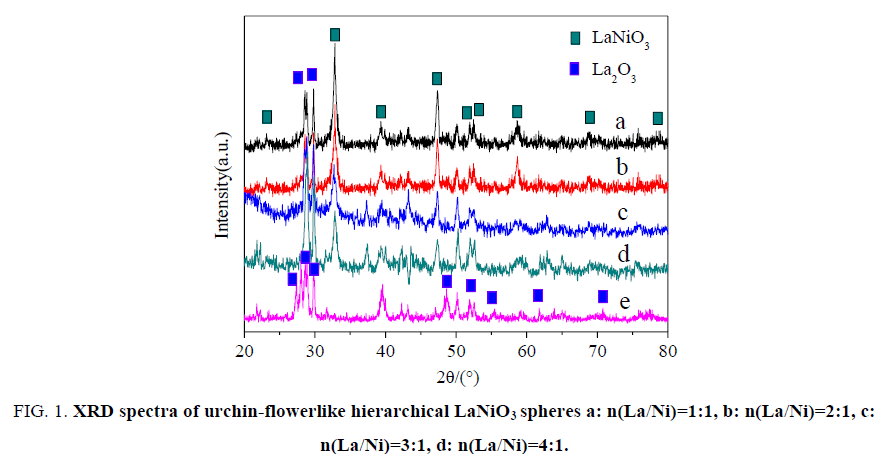

Figure 1: XRD spectra of urchin-flowerlike hierarchical LaNiO3 spheres a: n(La/Ni)=1:1, b: n(La/Ni)=2:1, c: n(La/Ni)=3:1, d: n(La/Ni)=4:1.
Scanning electron microscopy analysis
The urchin-flowerlike hierarchical LaNiO3 spheres were synthesized successfully by a modified coprecipitation method from ultrahigh dilute (vesicle) solution. Various LaNiO3 microstructures were obtained at different magnifications as shown in Figure. 2. The SEM micrographs in Figure. 2a show that the LaNiO3-3 spheres diameters are ~20 μm to 30 μm. Figure. 2b shows a single LaNiO3-3 spheres with a typical sea urchin-flowerlike hierarchical structure; having a common centre. Figure. 2c shows regular multilayer nanoribbons with spiny three-dimensional structure. The LaNiO3-3 spheres are composed of ultrathin nanosheets (~100 nm), which self-assemble in orderly rows, termed nanoribbons (Figure. 2d).
Transmission electron microscopy analysis
TEM and high-resolution TEM (HRTEM) were used to study the urchin-flowerlike hierarchical LaNiO3 spheres structure. Figure. 3 shows the TEM micrographs of the LaNiO3 spheres. Many of the LaNiO3 spheres are less than 200 nm in diameter (Figure. 3a). Figure. 3b (high magnification) displays the well-defined lattice fringes of the d=0.275 nm (110) crystal plane of one area of the LaNiO3, and the d=0.381 nm (101) crystal plane of adjacent areas. Figure. 3c displays the parallel fringes of the d=0.273 nm (110) crystal plane of LaNiO3 in other areas [20,21]. The Fast Fourier Transform (FFT)  image (Figure. 3d) shows two different distances of 0.005 and 0.007 1/pm corresponding to the (101) and (110) crystal planes of LaNiO3. These results are consistent with the HRTEM micrographs.
Figure 3: TEM urchin-flowerlike hierarchical LaNiO3 spheres, (b, c) HRTEM micrographs and (d) FFT image.
Figure. 4 presents the nitrogen absorption and desorption isotherms for the LaNiO3. The BET surface area of the LaNiO3-3 is 37.67 m2g-1. The pore diameter distribution of the hierarchical LaNiO3-3 was measured by the Barret-Joyner-Halenda(BJH) method and is shown in the insets of Figure. 5. The pore size calculated by the adsorption branch is in the range of 100-110 nm. The present hierarchical LaNiO3-3 sphere with nanosheets will potentially exhibit superior performance in catalysis properties.

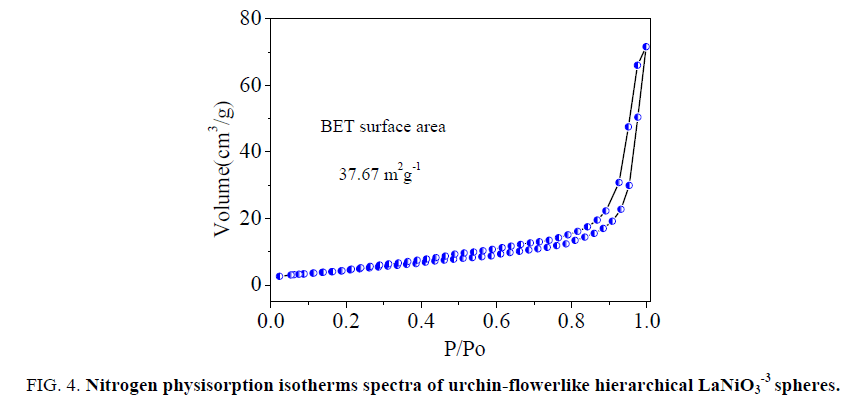

Figure 4: Nitrogen physisorption isotherms spectra of urchin-flowerlike hierarchical LaNiO3-3 spheres.
X-ray photoelectron spectroscopy analysis

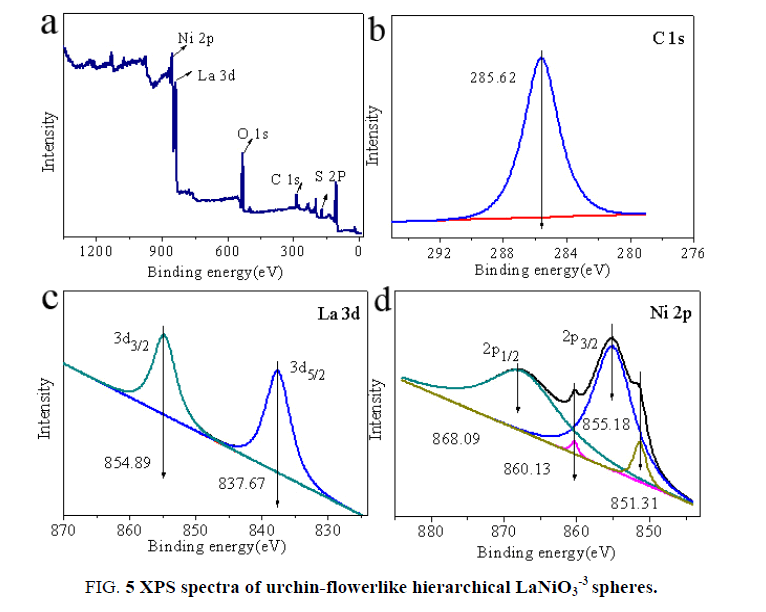

The corresponding XPS spectra provide further structural information on the obtained urchin-flowerlike hierarchical LaNiO3 spheres. The spectra of all element valence bands for the LaNiO3 spheres are shown in Figure. 4. Figure. 4a shows that the sample contains elemental La, Ni, O, C, and S. The C and S were introduced via the surfactant (SDBS). In Figure. 4b, the C 1s spectrum consists of a single peak with a binding energy of 285.62 eV. In Figure. 4c, the La 3d spectrum [23,24] consists of two individual peaks at 837.67 and 854.89 eV, which can be attributed to the La 3d5/2 and La 3d3/2 binding energies, respectively. The binding energies of La 3d5/2 and La 3d3/2 are larger than the standard values (La 3d5/2 836.0 eV; La 3d3/2 853.0 eV) [25-26]. Furthermore, the La 3d peaks are shifted by 1.6 eV toward the larger binding energies because of the La-Ni interaction.
In Figure. 4d, the Ni 2p spectra [27-28] of the LaNiO3 consist of four relevant peaks at 860.13 and 868.09 eV and 851.31 and 855.18 eV, which can be attributed to the Ni 2p1/2 and Ni 2p3/2 binding energies, respectively. The binding energies of Ni 2p1/2 and Ni 2p3/2 are lower than the standard values (Ni 2p1/2 869.29 eV; Ni 2p3/2 852.6 eV) [29-30]. The Ni 2p peak centered at 855.18 eV indicates the possible presence of Ni(OH)2. However, the decomposition temperature of Ni(OH)2 ranges from 200 to 300°C and therefore Ni(OH)2 does not exist in the LaNiO3 spheres that were calcined at 750°C for 5.5 h. Additionally, it should be noted that the Ni 2p peaks are shifted by 1.2 eV toward lower binding energies because of the La-Ni interaction . The change in electron binding energy occurs primarily because of the formation of LaNiO3 microspheres. These results indicate that the chemical state of LaNiO3 is the same in the support.
Temperature-programmed reduction analysis
H2-TPR experiments were conducted to investigate the relative reducibility of urchin-flowerlike hierarchical LaNiO3-3 spheres with different La/Ni molar ratios. Figure. 6 shows the TPR profiles of the LaNiO3 spheres. The LaNiO3 spheres had three main reduction peaks around 350°C (Tr1), 500°C(Tr2), 680 °C(Tr3). Concerning the peak area, the second (reduction desk) and third peaks of LaNiO3-3 are much higher than those of LaNiO3-1, LaNiO3-2 and LaNiO3-4 while those for the second peaks are not clear. According to Zeng GM  the reduction of LaNiO3 proceeds in three steps:
4 LaNiO3+2 H2 → La4Ni3O10+Ni+2 H2O (250-360°C) (1)
La4Ni3O10+3 H2 → La2NiO4+2 Ni+La2O3+3 H2O (360-430°C) (2)
La2NiO4+H2 → Ni+La2O3+H2O (600-750°C) (3)

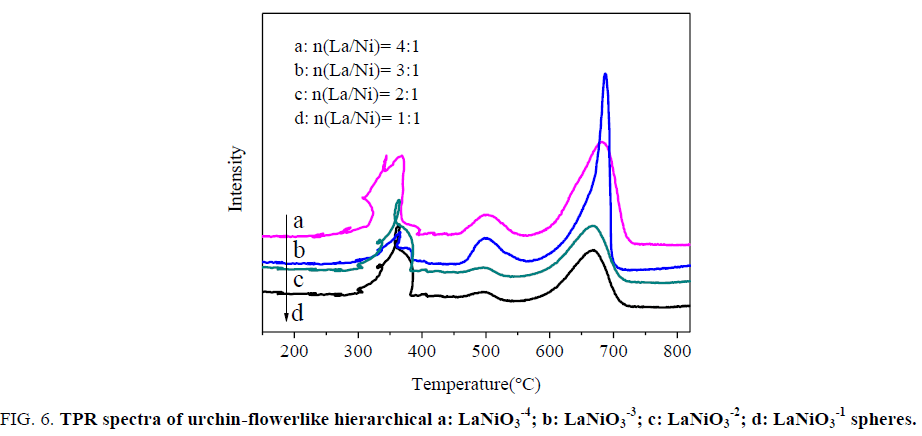

Figure 6: TPR spectra of urchin-flowerlike hierarchical a: LaNiO3-4; b: LaNiO3 -3; c: LaNiO3-2; d: LaNiO3-1 spheres.
The TPR results shown in Figure. 6 demonstrate that several kinds of Ni species present on the catalyst surface. As revealed, the first peak is attributed to the crystalline phases and to the successive reduction of LaNiO3 to La4Ni3O10 and Ni0 (Tr1). And the second peak is attributed to the crystalline phases and to the successive reduction of La4Ni3O10 to La2NiO4, La2O3 and Ni0 (Tr2). For the third peak, they should be ascribed to the reduction of La2NiO4 incorporated into the La2O3 and Ni0 (Tr3), in good agreement with LaNiO3 reported previously . In addition, the three peaks reveal that the urchin-flowerlike hierarchical LaNiO3 sphere materials had a significant impact on the reducibility.
Catalytic activity of LaNiO3 spheres
Figure. 7(1) displays the RB degradation activity of different urchin-flowerlike hierarchical LaNiO3 spheres by plotting Ct/Co as a function of time . Here Co and Ct are the initial concentration and concentration of RB at time, respectively. As shown in Figure. 7(1) a, RB degradation without a photo catalyst was also performed, and the results demonstrated that the degradation of RB was very slow in the absence of a photo catalyst under ultraviolet-light irradiation. As shown in Figure. 7(1), in the presence of hierarchical LaNiO3 spheres but in darkness, the removal rate of RB was 18% within 30 min. Almost no change occurred during the 30 min, which was attributed to the low specific surface area of the samples. All change occurred during the next 270 min, which was attributed to good photocatalytic activities of LaNiO3. It can be seen 95.63% of the RB was degraded by LaNiO3-3 spheres under identical conditions, but under irradiation with ultraviolet light. This demonstrated that the hierarchical LaNiO3-3 sphere nanostructures exhibited excellent in situ ultraviolet-light-driven photocatalytic performance.

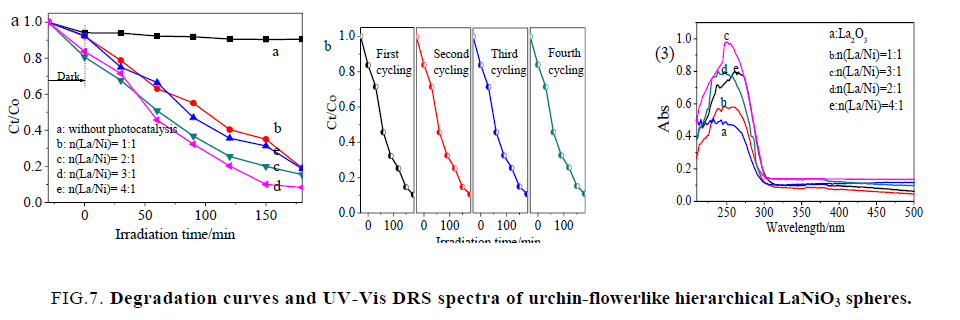

Figure 7: Degradation curves and UV-Vis DRS spectra of urchin-flowerlike hierarchical LaNiO3 spheres.
Moreover, the regeneration capability of the hierarchical LaNiO3-3 spheres was examined for degradation of dye during a four-cycle experiment, which was very important for the hierarchical LaNiO3-3 spheres to apply in environmental technology. Figure. 7(2) shows the plot of degradation percentage as a function of cycle number. As shown in Figure. 7(2), each experiment was carried out under identical conditions; after a four-cycle experiment, the photocatalytic activity of the hierarchical LaNiO3-3 spheres remained almost unchanged. It was indicated that the hierarchical LaNiO3 spheres displayed an efficient photoactivity for the degradation of organic pollutants under ultraviolet-light irradiation and could easily be separated for reuse.
Figure. 7(3) shows the absorbance vs. wavelength plots for urchin-flowerlike hierarchical LaNiO3 spheres. It is interesting to note that the absorption spectra show a distinct broad feature at 300 nm for the LaNiO3 spheres. The absorption peaks indicate the zero dimensional characteristics of corresponding samples, with the lower wavelength absorption feature is assigned to the size-quantized particles.
In summary, the modified coprecipitation method has been used to produce urchin-flowerlike hierarchical LaNiO3 spheres. This approach provides a relatively simple, environmentally friendly, economical method that is suitable for large-scale production and is affordable for the preparation of magnetic microspheres with a tunable diameter range of 20 μm to 30 μm. Furthermore, we report here another important finding on the urchin-flowerlike hierarchical LaNiO3 spheres as a catalyst for MB degradation with high degradation efficiency.
