Research
, Volume: 19( 8)

Green Route for Synthesis of Schiff Base Material and its Thermal Degradation

*Correspondence:
Gajbhiye RG Department of Chemistry, Vidya Vikas Arts, Commerce and Science College, India, E-mail: [email protected]

Received: August 16, 2021; Accepted: August 27, 2021; Published: September 09, 2021

Citation: Gajbhiye RG. Green Route for Synthesis of Schiff Base Material and its Thermal Degradation. Int J Chem Sci. 2021; 19(8):413

Abstract

The present research paper describes the green route for synthesis and thermal decomposition studies of newly synthesized Cu (II), Ni (II), Pt (II) and Pd (II) complexes from Schiff base ligand P-Methoxy Isonitroso Acetophenone (p-MINAP). The reaction of ligand PMINAP with metal salts of Cu (II), Ni (II), Pt (II) and Pd (II) results in the formation of respective metal complexes by green synthesis till upto 90%. The compounds were characterized on the basis of elemental analysis, infrared (IR), ultraviolet-visible and 1H-nuclear magnetic resonance spectroscopic techniques. Thermal stability and decomposition behavior of complexes have been studied with the help of thermogravimetric technique at a heating rate 20°C min-1 in a nitrogen atmosphere.

Keywords

P-MINAP; Metal complexes; Infrared; 1H NMR; Thermal analysis

Introduction

Metals which are essential for animal and plant nutrition are known to form chelates with materials present in the organism. Metal chelates are often intermediate products during catalytic action of enzymes. Therefore, the inorganic chemistry witnessed a great outflow of coordination compounds, with unique structutral characterisitics and diverse application [1-3]. In recent years, metal complexes with Schiff base shows much more potent antibacterial effect against some microorganisms than standard drugs [4-6]. In coordination chemistry, Schiff base play a vital role due to simplicity in their synthesis, different properties and medicinal applications. A number of transition metal complexes with Schiff base acts as an antibacterial and antifungal agents [7-9]. Schiff bases are considered to be very good chelating agents [10], especially when –OH functional group closed with azomethine group. This paper describes the synthesis of Ni (II), Pt (II) and Ir (II) transition metal complexes with the ligand namely p-methoxy isonitroso acetophenone (p-MINAP) have been characterized by various physicochemical technique namely Elemental Analysis, Infrared spectroscopy, 1H NMR spectroscopy and thermo gravimetric technique at a heating rate 20°C min−1 in a nitrogen atmosphere.

Material and Methodology

All the chemicals used were of analytical grade. Solvents used were of analytical grade and purified by standard procedures [11].

Preparation of Cu (p-MINAP)2 complex

1:2 stoichiometric ratios of Copper Nitrate and (p-MINAP) were dissolved in minimum quantity of absolute alcohol and equal volume of distilled water. The copper nitrate solution was added to the reagent solution drop wise with constant stirring.

The pH of the resultant solution was adjusted to 6 –7 with HCl / NH4OH. A pinkish colored complex thus formed was digested on water bath for several hours; it was filtered, washed with distilled water& dried. It was recrystallized from chloroform and finally analyzed for copper, carbon, hydrogen and nitrogen.

Preparation of Ni (p-MINAP)2 complex

0.716 g of p-MINAP is dissolved in minimum volume of absolute alcohol and equal volume of water is added; similarly, 0.352 g of nickel acetate is dissolved in minimum volume of absolute alcohol and equal volume of water is added. The nickel salt solution is added to reagent solution drop by drop with constant stirring by maintaining the pH of solution mixture at 5
– 5.6 using buffer tablets. The solution mixture is refluxed on sand bath at 80-100°C for several hours. The solid complex is formed. It was filtered, dried in air and analyzed for nickel, carbon, hydrogen and nitrogen.

Preparation of Pt (p-MINAP)2 complex

0.265 g of Platinum (II) chloride was dissolved in a minimum Volume of alcohol and equal quantity of water was added. Similarly 0.358 g of p-methoxy isonitrosoacetophenone was dissolved in a minimum quantity of alcohol and equal volume of water was added. The solution of Platinum was added to the reagent solution drop wise with continuous stirring in a conical flask. The pH was adjusted to 3.5 to 4.2 using buffer tablets. Then the solution was kept in a boiling water bath for 35 minutes, a colored complex was separate out. It was filtered, washed with water and then alcohol, dried at 100°C for several hours and analyzed for Platinum, carbon, hydrogen and nitrogen.

Preparation of Pd (p-MINAP)2 complex

0.355 g of Palladium chloride was dissolved in a minimum Volume of alcohol and equal quantity of water was added. Similarly 0.716 g of p-methoxy isonitrosoacetophenone was dissolved in a minimum quantity of alcohol and equal volume of water was added. The solution of Palladium (II) was added to the reagent solution drop wise with continuous stirring in a conical flask. The pH was adjusted to 2.5 to 3.2 using buffer tablets. Then the solution was kept in a boiling water bath for 20 minutes, a colored complex was separate out. It was filtered, washed with water and then alcohol, dried at 100°C for 3 hours and analyzed for Palladium, carbon, hydrogen and nitrogen.

Thermo analytical techniques

Thermo gravimetric analysis and differential thermal analysis carried out by using Mettler Toledo Stare system simultaneous TGA-DTA at a heating rate of 20°C per minute in nitrogen atmosphere.

Result and Discussion

The synthesized compounds were colored, crystalline, stable in air, non-hygroscopic, and insoluble in water but soluble in polar solvent like DMF and DMSO. Composition and identity of the ligand and its metal complexes were carried out by elemental analysis and molar conductance are listed in Table 1 shows metal complexes have non-electrolyte nature [14]. The structure of the synthesized ligand and its metal complexes were established with the help of spectral techniques. The spectroscopic data for the newly synthesized metal complexes are in good agreement with proposed formulation.

  Compound   Mol. Formula   Colour Mol. Wt. C% Found (calc) H% Found (Calc) N% Found (Calc) O% Found (calc) Metal % Molar Condu. Sm2mol-1
  p-MINAP C9H9O3N Yellow 179.16 60.30 (60.33) 5.12 (5.06) 7.75 (7.82) 26.83 (26.79) ----- ----
Cu(p- MINAP)2 Cu(C18H18O6N2) Light Green 421.9 51.30 (51.25) 4.25 (4.30) 6.60 (6.64) 22.82 (22.75) 15.03 (15.06) 7.35
Ni(p- MINAP)2 Ni(C18H18O6N2) Green 417 51.80 (51.84) 4.39 (4.35) 6.74 (6.72) 23.02 (23.02) 14.05 (14.07) 3.2
Pt(p- MINAP)2 Pt(C18H18O6N2) Gray 553.4 39.10 (39.07) 3.29 (3.28) 5.02 (5.06) 17.37 (17.35) 35.22 (35.25) 9.5
Pd(p- MINAP)2 Pd(C18H18O6N2) Yellowish 464.75 46.50 (46.52) 3.92 (3.90) 6.05 (6.03) 20.61 (20.66) 22.92 (22.90) 10.2

Table 1: Elemental analysis data of the Ligand and its metal complexes.

Infrared spectra

I.R. spectra (4000-400 cm-1) of the complexes are practically identical. The frequencies of some significant band of the free ligand and those of the metal complexes are reported in Table 2. The observed frequencies of different groups in the metal complexes have been assigned on the basis of literature data.

  Assignment   p-MINAP Cu(p- MINAP)2   Ni( p-MINAP)2   Pt( p-MINAP)2   Pd(p-MINAP)2
Aromatic C-H 3018.70 3038.72 3046.07 3080.69 3071.76
OH of =N-OH 3317.39 ----- ------- ------- -------
-C=O 1710.51 ----- ------- ------- -------
-C=N 1610.11 1617.68 1613.87 1610.15 1602.31
-OCH3 2840.23 2840.32 2848.62 2861.93 2864.63
=C-H 1440.12 1440.68 1442.49 1446.33 1443.22
=N? O ------- 1238.57 1236.42 1246.49 1243.82
Para Substituent 766 790.32 793.31 783.46 782.46
M-N ------- 627.30 621.81 645.57 657.17

Table 2: Infrared Spectral Frequencies (4000 to 400 cm-1 ) of ligand and metal complexes.

The vO-H of the oxime group observed at 3317 cm-1 in (p-MINAP) is absent in the spectra of the complexes suggesting replacement of the oxime proton by the metal ion during complexation[15]. The peak observed near 1614, 1610 cm-1 in spectrum of Cu (p-MINAP)2, Ni (p-MINAP)2, Pt (p-MINAP)2 and Pd (p-MINAP)2 may be assigned to the perturbed vC=0 and/or vC=N stretching vibration involving bonding through oxygen, and nitrogen donor atoms.

A band appears in the range 1300-1200 cm-1 is reported that N-oxide (N→O) stretching mode in aromatic ring compounds [16]. It is significant to note that for metal complexes reported to have coordination only through the oxime oxygen or nitrogen atoms only.

This suggests asymmetrical five member ring structure. In Cu(II), Ni(II), Pt(II) and Pd(II) complexes two bands in the region cited earlier on asymmetrical structure with five member rings involving bonding through oximes nitrogen atom must be expected, such symmetrical structures.

1H NMR Spectra

1H NMR Spectra of P-methoxy isonitroso acetophenone and its metal complexes such as Cu(p-MINAP)2, Ni(p-MINAP)2 , Pt(p- MINAP)2 and Pd(p-MINAP)2 in DMSO solution exhibit peaks due to -CH group, -OCH3 group & Ca and Cb of aromatic ring protons Ha and Hb while does not show any proton signal due to =N-OH group. This suggest that their metal complexes have been formed by the replacement of the proton of the =N-OH group by the metal ion.

It is interesting to note that the peaks due to –CH protons in metal complexes appear at similar value compared to that of
–CH proton in the reagent p-MINAP. Further signals of aromatic ring protons in these complexes occur at higher field side with respect to that of aromatic ring signal in P-methoxy isonitroso acetophenone. The donor atom is closest to the metal ion which involved in the formation of metal ligand bond.

Nuclear magnetic resonance signals observed in p-methoxy isonitroso acetophenone (p-MINAP) and its metal complexes are shown in Table 3.

Compounds =NOH group Aromatic Ring ? CaH group Aromatic Ring - CbH group -CH Group -OCH3 Group
p-MINAP 8.48 7.92 7.60 2.42 3.90
Cu(p-MINAP)2 ---- 7.94 7.68 2.44 3.84
Ni(p-MINAP)2 --- 7.90 7.66 2.40 3.86
Pt (p-MINAP)2 --- 7.96 7.68 2.42 3.92
pd (p-MINAP)2 ---- 7.92 7.66 2.42 3.90
All Values in d scale

Table 3: Assignments of 1H NMR Signals in p-MINAP & Metal Complexes.

Thermal analysis

There are various methods of thermal analysis; some of the chief methods that are usually employed are TGA and DTA. This method may be defined as experimental methods for characterizing a system (element or compound) by measuring the changes in physical and or chemical properties taking place in the system as a function of increasing temperature with time. Agrawal et.al. [17] studied the thermal properties of Th(IV)-N-m-tolyl-m-nitrobenzohydroxamate, and suggested that exothermic peak above 200°C presumably may due to burning of organic matter. Bhave and Kharat [18] have studied the thermal properties of metal complexes of some chalk one oximes, isodithiobiurets etc. and found that after loss of hydrated/coordinated water, decomposition of the complex took place in a single step and the order of thermal stability for these complexes is Co(II)> Ni(II)> Cu(II). In general the water of hydration may be considered either as the crystal or as coordination water. The water eliminating below 150°C can be considered as the crystal water and water eliminating above 150°C may be due to its coordination to the metal ion [19-20].

The experimental results of thermo gravimetric analysis are incorporated in Tables 4-7 and figures 1-4. The complexes with p-MINAP have been studied by thermo gravimetric analysis and different thermal analysis techniques. All complexes are found to be stable at room temperature and water of molecules is not associated with them. On heating they start losing their weight with the loss of ligand by fragmentation and finally forming corresponding metal or metal oxides accordingly [21-23].

Temperature oC Temperature oK (T) % Residue % Mass loss
(C)
110.00 383 100 0.00
130.00 403 99.16 0.84
150.00 423 98.50 1.50
170.00 443 97.69 2.31
190.00 463 97.05 2.95
210.00 483 96.54 3.46
230.00 503 95.22 4.78
250.00 523 94.72 5.28
270.00 543 93.35 6.65
290.00 563 92.25 7.75
310.00 583 67.33 32.67
330.00 603 47.20 52.80
350.00 623 43.27 56.73
370.00 643 41.75 58.25
390.00 663 40.98 59.02
410.00 683 39.39 60.61
430.00 703 35.16 64.84
450.00 723 32.46 67.54
470.00 743 30.64 69.36
480.00 753 29.06 70.94
490.00 763 28.49 71.51

Table 4: Result of Thermo gravimetric analysis of complex Cu (p-MINAP)2.

Temperature oC Temperature oK (T) % Residue % Mass loss (C)
170.00 443 100
180.00 453 99.67 0.33
200.00 473 98.84 1.16
220.00 493 98.19 1.81
240.00 513 97.49 2.51
260.00 533 96.58 3.42
280.00 553 95.04 4.96
300.00 573 93.21 6.79
320.00 593 90.56 9.44
340.00 613 85.01 14.99
360.00 633 80.65 19.35
380.00 653 77.33 22.67
400.00 673 72.48 27.52
420.00 693 68.03 31.97
440.00 713 61.9 38.1
460.00 733 51.96 48.04
480.00 753 40.31 59.69
490.00 763 38.01 61.99
500.00 773 34.07 65.93
510.00 783 32.35 67.65

Table 5: Result of Thermo gravimetric Analysis of Complex Ni (p-MINAP)2

Temperature oC Temperature oK (T) % Residue % Mass loss (C)
150.00 423 100.00
170.00 443 99.87 0.13
190.00 463 99.70 0.30
210.00 483 99.26 0.74
230.00 503 98.86 1.14
250.00 523 98.56 1.44
270.00 543 98.19 1.81
290.00 563 97.05 2.95
310.00 583 84.06 15.94
330.00 603 75.43 24.57
350.00 623 67.81 32.19
370.00 643 63.78 36.22
390.00 663 61.29 38.71
410.00 683 58.46 41.54
430.00 703 55.33 44.67
450.00 723 51.70 48.30
470.00 743 45.33 54.67
490.00 763 39.04 60.96
510.00 783 36.79 63.21
520.00 793 36.66 63.34

Table 6: Result of Thermo gravimetric Analysis of Complex Pt (p-MINAP)2.

Temperature oC Temperature oK (T) % Residue % Mass loss (C)
200.00 473 101.52 -1.52
220.00 493 99.47 0.53
240.00 513 95.14 4.86
260.00 533 88.72 11.28
280.00 553 83.75 16.25
300.00 573 80.33 19.67
320.00 593 72.90 27.10
340.00 613 65.88 34.12
360.00 633 58.24 41.76
380.00 653 51.76 48.24
400.00 673 43.62 56.38
420.00 693 40.14 59.86
440.00 713 39.79 60.21
460.00 733 38.90 61.10
480.00 753 38.39 61.61
490.00 763 38.38 61.62

Table 7: Result of Thermo gravimetric Analysis of Complex Pd (p-MINAP)2.

International-Journal-Chemical-Sciences-Cu

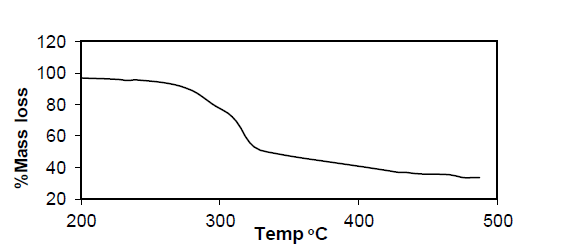

Figure 1: Thermo-gram of Cu (p-MINAP)2

International-Journal-Chemical-Sciences-Ni

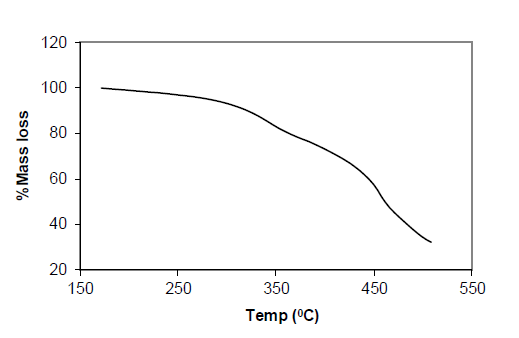

Figure 2: Thermo-gram of Ni (p-MINAP)2

International-Journal-Chemical-Sciences-Pt

Figure 3: Thermo-gram of Pt (p-MINAP)2

International-Journal-Chemical-Sciences-Pd

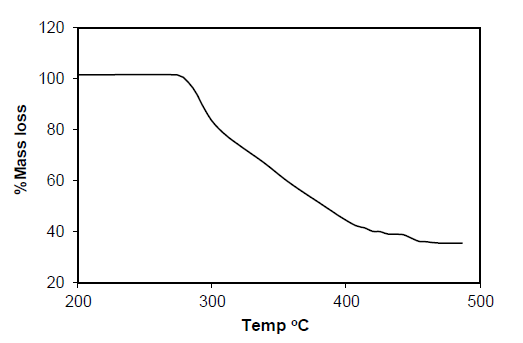

Figure 4: Thermo-gram of Pd (p-MINAP)2

Cu (p-MINAP)2: The TGA curve of compound Cu(p-MINAP)2 shows a significant reduction in weight (60%) due to decomposition of compound at lower temperatures. The resulting decomposed compounds are not stable to heat and losing their weight gradually upto 500°C.

Ni (p-MINAP)2: The TGA Spectrum of Ni(p-MINAP)2 shows continuous loss of moisture with an increase in temperature up to 550°C. Almost 20% reduction in weight is observed. The sharp loss in weight is observed in TGA curve. This significant loss in weight may be due to decomposition of compound which is also supported by DTA curve. Formation of oxides of nickel is observed at 510°C by TGA & DTA thermo gram.

Pt (p-MINAP)2: The TGA spectrum of compound Pt(p-MINAP)2 does not show the sharp reduction in the weight with respect to temperature, continuous gradual reduction of weight is observed upto 520°C and which is decompose completely at 520°C by forming oxides of platinum.

Pd (p-MINAP)2: The TGA curve of compound Pd(p-MINAP)2 shows a significant reduction in weight (45%) due to decomposition of compound at lower temperatures. The resulting decomposed compounds are not stable to heat and loosing their weight gradually up to 490°C. The resulting compound undergoes decomposition above 490°C.

Conclusion

On the basis of analytical, IR, 1H NMR spectral data and magnetic properties, the metal ligand composition was found to be 1: 2. The geometry of complex octahedral geometry has been assigned to Cu (II), Ni (II), Pt (II) and Pd (II) Complex. The thermal data show that complexes were highly stable and its thermal decomposition, as well as thermodynamic parameters, was studied.

Acknowledgement

The authors would like to thank all the teaching staff of the Department of Chemistry, Institute of Science, Nagpur for all the support rendered during this study.
