Original Article
Org Chem Ind J, Volume: 14( 1)

Polymeric Composite Materials Based on Silicate: I-Synthesis, Characterization and Formation Mechanism

*Correspondence:
MR Abass, Atomic Energy Authority, Hot Labs Centre, P. Code 13759, Cairo, Egypt, Tel: +20 102 722 7142; E-mail: [email protected];[email protected]

Received: December 03, 2017; Accepted: December 27, 2017; Published: December 28, 2017

Citation: Abou-Mesalama MM, Abassa MR, Ibrahima AB, et al. Polymeric Composite Materials Based on Silicate; I-Synthesis, Characterization and Formation Mechanism. Org Chem Ind J. 2017;14(1):121

Abstract

Magneso-silicate has been synthesized by precipitation technique. Polyacrylamide acrylic acid and polyacrylamide acrylonitrile impregnated with inorganic ion exchanger, magneso-silicate, have been synthesized by subjected co-monomers to gamma radiation initiated polymerization at radiation doses 25, 65 and 90 KGy. The structure features of composites were investigated by sequential x-ray fluorescence spectrometer, x-ray diffraction, differential thermal- thermogravimetric analyses and infrared spectroscopy. Formation mechanism for these composites was conducted and the results obtained showed that the polymerization process was carried out in the hydrocarbon chain by addition polymerization whereas impregnation of magneso-silicate into the polymeric composites was carried out by condensation polymerization.

Keywords

Magneso-silicate; Co-monomers; Gamma radiation; Condensation polymerization.

Introduction

Inorganic ion exchange materials play an important role in analytical chemistry, based originally on their resistance to chemical attack as well as their thermal and radiation resistance [1,2]. Polymers can be synthesized through various techniques such as radical, cationic and anionic polymerization [3]. The structural, mechanical and thermal properties can be investigated through different kinds of characterization methods to determination of structure property relationships [3,4]. Recently, polymers have been applied in various fields such as automotive, construction, electronic, cosmetic and pharmaceutical industries due to its advantageous material properties. Functional polymers of photochromic [5], electrochromic [6] and optoelectronic [7] functions were developed recently. The use of polymers with tunable refractive properties as optical modulators, optical filters, or electro optic waveguide devices has been reported [8]. The development of new inorganic ion exchangers with characteristic properties is still need attention and their utility in diverse fields is yet to be explored. Synthetic ion exchangers are used on a wide range for different applications, ranging from environmental remediation [1,9,10], water softening [10], hydrometallurgy [10] and selective adsorption [11,12] to medical applications [13-15]. Different materials based on silicate salts and poly acrylamide acrylic acid silicon titanate were synthesized earlier [1,11,16] and used for removal of some heavy metals from industrial and hazardous waste solutions.

In this work magneso-silicate (MgSi) as inorganic ion exchange material was synthesized using precipitation technique. Polyacrylamide acrylic acid P (AM-AA), polyacrylamide acrylonitrile P (AM-AN), polyacrylamide acrylic acid magneso-silicate {P (AM-AA)-MgSi} and polyacrylamide acrylonitrile magneso-silicate {P (AM-AN)-MgSi} composites have been synthesized by gamma radiation initiated polymerization at radiation doses 25, 65 and 90 KGy. The prepared composite materials were analyzed by different analytical techniques and a new ion exchange character was represented compared to the original ones.

Experimental Procedure

All chemicals and reagents used were of analytical grade.

Synthesis of magneso-silicate composite

Magneso-silicate ion exchange material was synthesized as reported earlier [1,11,14] by the addition of equimolar solutions (0.5 M) of magnesium chloride to sodium metasilicate dropwisely with volumetric ratio for (Mg/Si) equal 1.5 with continuous stirring in a water bath adjusted at 60 ± 1°C. The mixed solutions were immediately hydrolyzed in demineralized water. Diluted ammonia solution was added to the mixture until complete precipitation attained. The precipitate formed was kept in the mother solution to overnight standing. The precipitate was washed several times with distilled water, and then washed by 0.1 M HNO3 to remove impurities and Cl ions. The precipitate rewashed by distilled water to remove NO3− ions. After drying at 60 ± 1°C, solid was poured in near boiling distilled water heated at 70 ± 1°C to break the solid and remove air trapped inside the solid, then re-dried at 60 ± 1°C. The obtained solid was ground and store at room temperature.

Synthesis of monomer solutions

The investigated monomer solutions, acrylamide (AM), acrylic acid (AA) and acrylonitrile (AN) were prepared by dissolving 10% of each monomer in deoxygenated water.

Synthesis of co-monomer solutions

The acrylamide (AM) monomer solution was mixed with an aqueous solutions of acrylic acid (AA) and acrylonitrile (AN) by drop with addition at constant stirring and room temperature with volumetric ratio equal unity for the preparation of (AM+AA) and (AM+AN) co-monomers, respectively. Then the (AM+AA) and (AM+AN) co-monomers were mixed with equimolar solutions (0.5M) of sodium metasilicate and magnesium chloride hexahydrate by drop with addition at constant stirring and room temperature with volumetric ratio (AM-AA-Mg-Si) and (AM-AN-Mg-Si) equal 1:1:1.5:1, respectively.

Synthesis of P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites

P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites were prepared by subjected mixtures of (AM+AA), (AM+AN), (AM+AA+Mg+Si) and (AM+AN+Mg+Si) co-monomers to gamma radiation at radiation doses 25, 65 and 90 KGy with dose rate 1.05 KGy/h. After irradiation, the obtained hydrogel was cut into small pieces with a stainless steel scissors, soaked in acetone for removal of unreacted monomers, washed with water [17], dried at 50°C, grained, sieved for different mesh sizes and stored at room temperature [18].

Composition and characterization of synthesized composites

IR spectra of MgSi, P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites prepared at different radiation doses were carried out by mixing of the solid with KOH in ratio 1:5 and ground to a very fine powder. A transparent disc was formed in a moisture free atmosphere. The IR spectra were recorded using BOMEM FTIR spectrometer in the range 400–4000 cm−1.

The stoichiometry of the constituents in MgSi and polymeric composites based to silicate prepared at different radiation doses were determined using Philips sequential x-ray spectrometer-2400. The solid samples were ground to very fine powders and then mixed with H3BO3 as a binder to facilitate the pressing process. The mixture was pressed in a sample holder of 40 mm diameter aluminum cups and pressed on pressing machine at 20 psi to produce a sample with the diameter of 40 mm and 5 mm thickness. The concentrations of magnesium and silicone were measured according to Super-Q quantitative application program.

X-ray diffraction patterns of prepared composites were carried out using a Shimadzu XD-D1, X-ray diffractometer with Cu-Kα radiation tube source (λ=1.5406A°) and graphite monochromator operating at 30 kV and 30 mA. The measurements were done in 2θ ranges from 4 to 90 with scan speed 2°/min.

Prepared composites (20 mg) were analyzed for DTA and TGA with sample holder made of Pt in N2 atmosphere using a Shimadzu DTG-60H. The heating rate was maintained at 10°C/min with using alumina powder as reference material.

Results and Discussion

The scope of this study is the attempt to synthesize a high chemical stable inorganic, organic and composite ion exchange materials with high selectivity for some heavy metals. MgSi, P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites prepared at different radiation doses have been synthesized with complete characterization for ion exchange materials.

Magneso-silicate (MgSi) was prepared earlier in our laboratories [11]. The formation mechanism of prepared MgSi can be represented as shown in SCHEME. 1 . Magneso-silicate material was obtained by substitution of two Na+ ions by one Mg2+ ion and elimination of two molecules of NaCl.

organic-chemistry-magneso-silicate

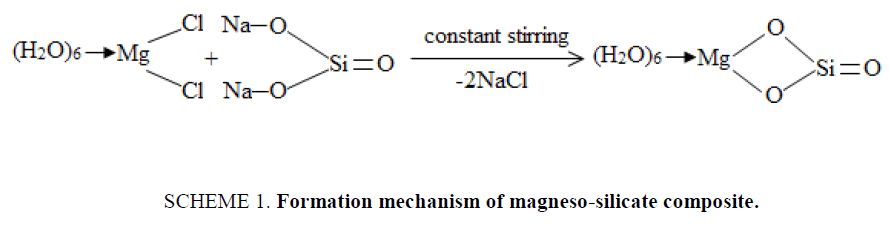

SCHEME 1: Formation mechanism of magneso-silicate composite.

P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites were prepared as mentioned before in the experimental part by gamma radiation initiated co-polymerization of (AAM+AA), (AM+AN), (AM+AA+Mg+Si) and (AM+AN+Mg+Si) co-monomers at radiation doses 25, 65 and 90 KGy. In gamma radiation initiated, the co-polymerization polymer complexes were formed which may be attributed to the possible steps [19]: preparation of the polymer by the generated radicals from the co-monomers, and the propagation of the co-monomer associated with the polymer by free radicals generated in the system [16,20].

The formation mechanism of P (AM-AA) copolymers can be represented as shown in SCHEME. 2, when (AM+AA) co-monomer subjected to gamma radiation, breaking down was carried out for double bond of (AM) and (AA) to form covalent bond between C atoms of (AM) and (AA), the polymerization in the chain occurred by addition polymerization [21]. (AM+AA) free radical was obtained. (AM+AA) free radical react with (AM+AA) co-monomer to form chain propagation. Finally, the chains were coupled with another (AM-AA) free radicals to obtain P (AM-AA) copolymer.

organic-chemistry-polyacrylamide

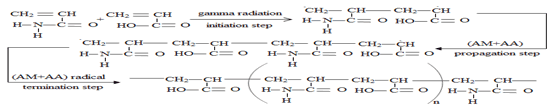

SCHEME 2: Formation mechanism of polyacrylamide acrylic acid copolymer.

The formation mechanism of P (AM-AN) copolymers can be shown in SCHEME. 3, from this scheme; when (AM+AN) co-monomer subjected to gamma radiation, breaking down was carried out for double bond of (AM), (AN) to form covalent bond between C atoms of (AM) and (AN), the polymerization in the chain occurred by addition polymerization [21]. (AM+AN) free radical was obtained. (AM+AN) free radical react with (AM-AN) co-monomer to form chain propagation. Finally, the chains were coupled with another (AM-AN) free radicals to obtain P (AM-AN) copolymer.

organic-chemistry-acrylonitrile

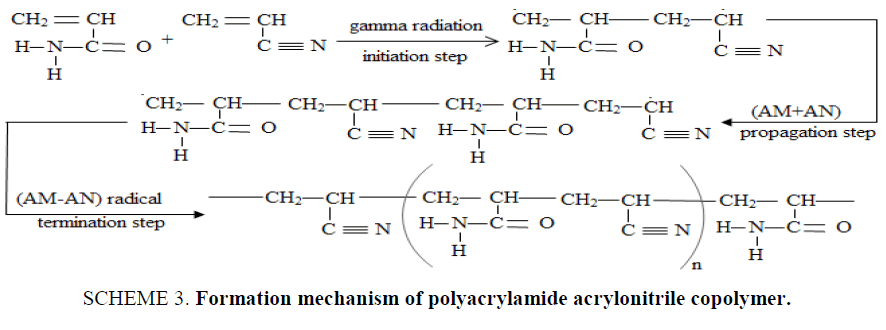

SCHEME 3: Formation mechanism of polyacrylamide acrylonitrile copolymer.

The formation mechanism of {P (AM-AA)-MgSi} composite can be represented as shown in SCHEME. 4 , the reaction started by converting of (AM) monomer to imine form in solution. Then imine form react with (AA+Mg+Si) to form (AM-AA-Mg-Si) co-monomer, and subjected to gamma radiation, breaking down was carried out for double bond of (AM) and (AA) and formation of covalent bond between C atoms of (AM) and (AA), the polymerization in the chain between (AM) and (AA) occurred by addition polymerization, where polymerization of (Mg-Si) in the chain was occurred by condensation polymerization [21] by elimination of OH− of carboxylate group of (AA) with Na+ of Na2SiO3 to form ionic bond between O atom of carboxylate group and Si atom of Na2SiO3 and elimination of H+ of imine form with Cl of MgCl2.6H2O to form ionic bond between O atom of imine form and Mg atom of MgCl2.6H2O and elimination Na+ of Na2SiO3 with Cl of MgCl2.6H2O to form ionic bond between O atom of Na2SiO3 and Mg atom of MgCl2.6H2O to form (AM-AA-Mg-Si) free radicals. (AM-AA-Mg-Si) free radical react with (AM-AA-Mg-Si) co-monomer to form chain propagation. Finally, the chains were coupled with another (AM-AA-Mg-Si) free radical to obtain {P (AM-AA)-MgSi} composite.

organic-chemistry-acrylic-acid

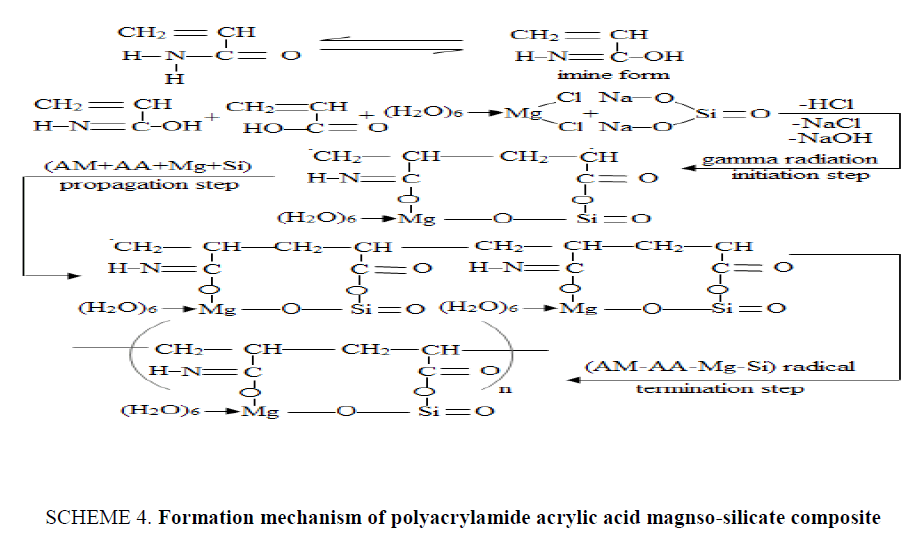

SCHEME 4: Formation mechanism of polyacrylamide acrylic acid magnso-silicate composite

The formation mechanism of {P (AM-AN)-MgSi} composite was shown in SCHEME. 5 , the reaction started by converting of (AM) monomer to imine form in solution. Then imine form reacted with (AN+Mg+Si) to form (AM-AN-Mg-Si) co-monomer, and subjected to gamma radiation, breaking down carried out for double bond of (AM), and (AN), the polymerization in the chain between (AM) and (AN) occurred by addition polymerization, where polymerization of (Mg-Si) in the chain was occurred by condensation polymerization [22-29], by elimination of OH− of imine form with Na+ of Na2SiO3 with formation of ionic bond between C atom of imine form and Si atom of Na2SiO3 and elimination Na+ from Na2SiO3 with Cl of MgCl2.6H2O with formation of ionic bond between O atom Na2SiO3 and Mg atom of MgCl2.6H2O and elimination of H+ of solution with Cl of MgCl2.6H2O and lone pair of electron of N atom of (AN) were bonded by ionic bond with Mg atom of MgCl2.6H2O to form (AM-AN-Mg-Si) free radical. (AM-AN-Mg-Si) free radical reacts with (AM-AN-Mg-Si) co-monomer to form chain propagation. Finally, the chains were coupled with another (AM-AN-Mg-Si) free radical to obtain {P (AM-AN)-MgSi} composite.

organic-chemistry-magnso-silicate

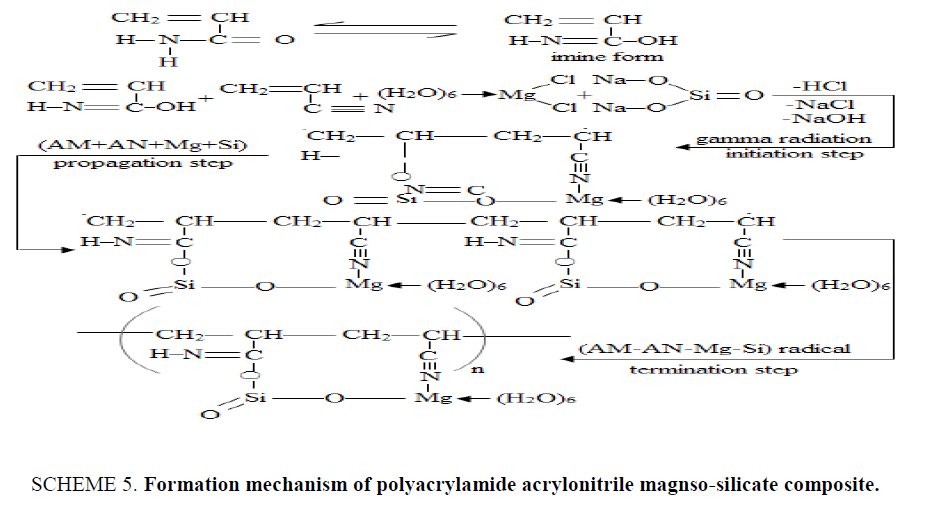

SCHEME 5: Formation mechanism of polyacrylamide acrylonitrile magnso-silicate composite.

The prepared samples of P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites are hard granulating in nature suitable for use in column operations with yellow color.

IR spectra of MgSi ion exchanger was shown in FIG. 1a, from this Figure six characteristic bands were observed in the regions 3150-3670, ~1652, 1000-1100, 903, 640 and ~ 470 cm-1. The absorption band at 3150-3670 cm-1 may be attributed to the stretching mode of water and OH groups absorbed on the composite [1,22,23]. The strong band appear at ~1652 cm-1 represents the bending mode of water molecules absorbed on MgSi composite [1]. The broad absorption band at 1000-1100 cm-1 is due to the metal-oxygen (Mg-O) bond [1]. The band at ≈ 903 cm-1 may be due to the Mg-OH deformation vibration or overlapping of the Si-O and Si-OH, and Mg-O bonds in the structure [1,24]. The broad bands at 640 and 470 cm-1 are assigned to Si-O-Mg and Si-O-Si bending vibrations, respectively [1,25].

organic-chemistry-IR-spectrum

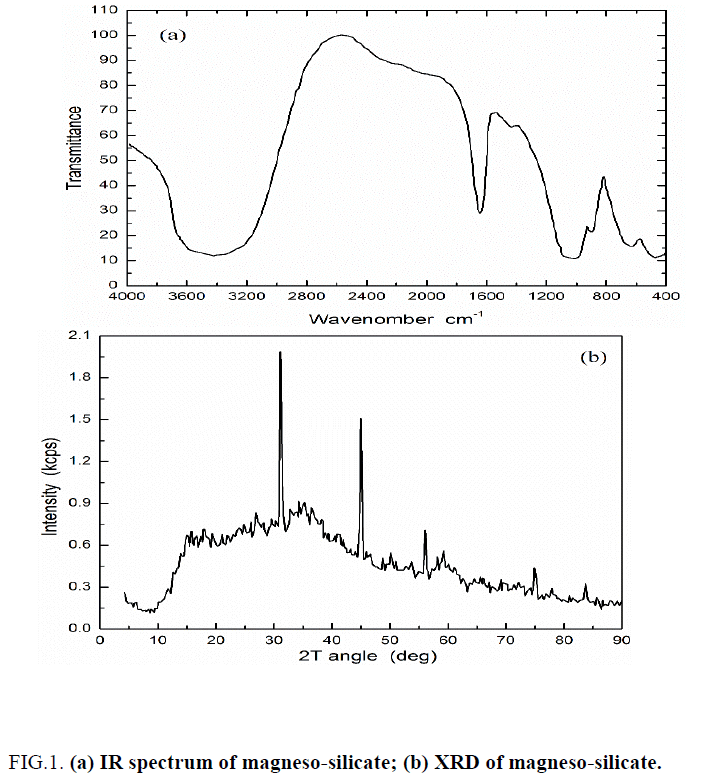

Figure 1: (a) IR spectrum of magneso-silicate; (b) XRD of magneso-silicate.

IR spectra of P (AM-AA) copolymers prepared at radiation doses 25, 65 and 90 KGy was represented in FIG. 2a , from this Figure two bands observed at 3450 and 3354 cm-1 [26]. The first band may be attributed to the stretching mode of N-H bond of acrylamide and the second band attributed to the stretching mode of O-H of acrylic acid [27]. The band appeared at 3210 cm-1 cross ponding to the stretching mode of H-O-H bonded of water molecules [28,29]. The bands appeared at (3090, 2950 and 2870 cm-1) may be due to the stretching mode of C-H of acrylamide and acrylic acid [30]. The strong band appeared at 1720 cm-1 attributed to the stretching mode of carbonyl group of acrylic acid [22,31]. Strong band appeared at 1550 cm-1 attributed to the bending mode of N-H bond of acrylamide [32]. Two bands appeared at 1450 and 1370 cm-1 may be attributed to the bending mode of C-H of acrylamide and acrylic acid [30,33]. Two broad bands appeared at 1213 and 1022 cm-1 attributed to the bending vibration of C-N of acrylamide [33,34].

organic-chemistry-radiation-doses

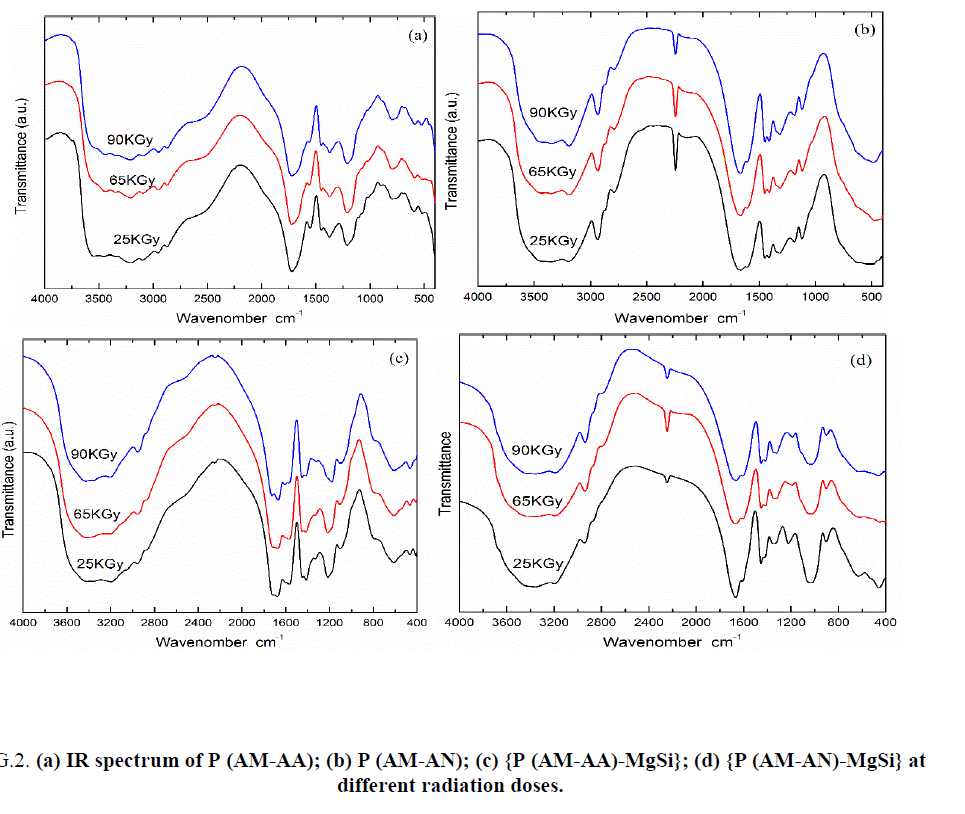

Figure 2: (a) IR spectrum of P (AM-AA); (b) P (AM-AN); (c) {P (AM-AA)-MgSi}; (d) {P (AM-AN)-MgSi} at different radiation doses.

IR spectra of P (AM-AN) copolymers prepared at radiation doses 25, 65 and 90 KGy was shown in FIG. 2b, from Figure represent, two bands appeared at 3340-3450 and 3195 cm-1 may be attributed to the stretching vibration of N-H bond of acrylamide [1,29]. Two bands observed at 2935 and 2875 cm-1 can be attributed to the stretching mode of C-H of acrylamide and acrylonitrile [35,36]. The band appeared at 2790 cm-1 may be due to the stretching mode of aldehyde group may be present by rearrangement in the structure [31]. The strong band appeared at 2244 cm-1 due to the stretching mode of C≡N of acrylonitrile [35-38]. The band appeared at 1665 cm-1 attributed to the stretching mode of carbonyl group of acrylamide [32]. Band appeared at 1605 cm-1 may be attributed to the bending mode of N-H bond of acrylamide [32]. Two bands observed at 1450 and 1409 cm-1 may be attributed to the bending mode of C-H of acrylamide and acrylonitrile [34-37]. Three bands appeared at 1316, 1182 and 1120 cm-1 attributed to the bending vibration of C-N of acrylamide and acrylonitrile [32,34,37].

IR spectra of {P (AM-AA)-MgSi} composites prepared at radiation doses 25, 65 and 90 KGy was represented in FIG. 2c, this Figure show that; broad band observed at 3460-3200 cm-1 can be attributed to the stretching mode of water and OH group absorbed on the composites [1]. The two bands observed at 3460 and 3200 cm-1 can be attributed to the stretching mode of N-H bond of acrylamide and H-O-H bonded of water molecules or O-H of acrylic acid respectively [27]. Two bands appeared at 2960 and 2875 cm-1 may be due to the stretching mode of C-H of acrylamide and acrylic acid [29-31]. Weak band appeared at 2245 cm-1 due to the stretching mode of C≡C bond may be present by rearrangement in the structure [29,36]. Two bands appeared at 1725 and 1675 cm-1, the former band may be due to the stretching mode of carbonyl group of acrylic acid [26,32], and the later band due to bending vibration of carbonyl group of acrylamide or due to presence of imine group or O-H bonded water molecules absorbed on the composite [32,39]. Band appeared at 1605 cm-1 for {P (AM-AA)-MgSi} at radiation dose 90 KGy attributed to the bending mode of O-H bonded water molecules absorbed on the composite [1]. The band appeared at 1571 cm-1 due to the bending mode of N-H bond of acrylamide [32]. Two bands appeared at 1451 and 1413 cm-1 may be attributed to the bending mode of C-H of acrylamide and acrylic acid [31,33,36]. Two bands appeared at 1331 and 1218 cm-1 for composite at radiation doses 25 and 65 KGy, where at 1331 and 1173 cm-1 for composite at radiation dose 90 KGy may be attributed to the bending mode of C-N of acrylamide [32]. Band appeared at 1104 cm-1, this band reflect that metal oxygen bond Mg-O [1,17,18]. Three bands appeared at 793, 611 and 465 cm-1. The first band may be attributed to the of Mg-OH deformation vibration or overlapping of the Si-O and Si-OH and Mg-O bonds in the structure [1,25]. The second band may be attributed to Si-O-Mg bending vibrations [25]. The third band may be due to Si-O-Si bending vibrations [1,25] the bands at 1104, 793, 611 and 465 cm-1 indicated that impregnation of Mg and Si in the polymeric resin, these results were agree with data obtained from XRF as will be set later.

IR spectra of {P (AM-AN)-MgSi} composites prepared at radiation doses 25, 65 and 90 KGy was shown in FIG. 2d, from this Figure broad band observed at 3475-3300 cm-1 can be attributed to the stretching mode of water and OH group absorbed on the composite or N-H bond of acrylamide [1,27]. Two bands observed at 3190 and 2940 cm-1 can be attributed to the stretching mode of N-H bond of acrylamide and C-H of acrylamide and acrylonitrile respectively, [34,36]. Strong band appeared at 2244 cm-1 due to the stretching mode of C≡N bond of acrylonitrile [36]. Two bands appeared at 1661 and 1605 cm-1, the first band may be attributed to the bending mode C=O group of acrylamide or due to presence of imine group [32], and the second band may be due to bending vibration of N-H bond of acrylamide or O-H bonded water molecules absorbed on the composite [1,36]. Two bands appeared at 1455 and 1413 cm-1 attributed to C-H of acrylamide and acrylonitrile [30]. Band appeared at 1571 cm-1 may be attributed to the bending mode of N-H bond of acrylamide [32]. Two bands appeared at 1451 and 1413 cm-1 may be attributed to the bending mode of C-H of acrylamide and acrylic acid [34-36]. Two bands appeared at 1340 and 1220 cm-1 for composite at radiation dose 25 KGy, where at 1340 and 1188 cm-1 for composite at radiation doses 65 and 90 KGy may be attributed to the bending mode of C-N of acrylamide [32]. The band appeared at 1040 cm-1 attributed to metal oxygen bond Mg-O [1,17,18]. Three bands appeared at 905, 636 and 460 cm-1). The first band may be attributed to the of Mg-OH deformation vibration or overlapping of the Si-O and Si-OH and Mg-O bonds in the structure [1,25]. The second band may be attributed to Si-O-Mg bending vibrations [1,25]. The third band may be due to Si-O-Si bending vibrations [1,25]. The bands at 1040, 905, 636 and 460 cm-1 indicated that impregnation of Mg and Si in the structure of polymeric resin, these results were agree with data obtained from XRF as will be set later.

X-ray diffraction patterns of MgSi composite were represented in FIG. 1b, from this Figure it is clear that Mg-Si has crystalline structure [1,40]. These results were agree with the data obtained from XRD of composites materials treated at different heating temperature [1,11,14]. The crystallinity of the prepared materials slightly improved with the increase of heating temperatures from 50°C to 850 ± 1°C, and there is a sharp improvement of crystallinity occurs at 850 ± 1°C.

FIG. 3a shows that XRD of P (AM-AA) copolymers prepared at radiation doses 25, 65 and 90 KGy. This Figure indicated that P (AM-AA) copolymers have amorphous structure and these results were similar to the data obtained from XRD of polyacrylamide-co-acrylic acid prepared by Hassan, et al. [31]. In addition, the crystalline character of the prepared samples was increased with radiation doses from 25 to 90 KGy. FIG. 3b shows XRD patterns for P (AM-AN) copolymers prepared at radiation doses 25, 65 and 90KGy. From this figure it is clear that the sample prepared at radiation dose 25 KGy has crystalline structure, and these results were similar to the data obtained from XRD of potassium hexacyano cobalt (II) ferrate (II) polyacrylonitrile (KCFC–PAN) [41], where samples prepared at radiation doses 65 and 90 KGy have amorphous structure.

organic-chemistry-radiation-doses

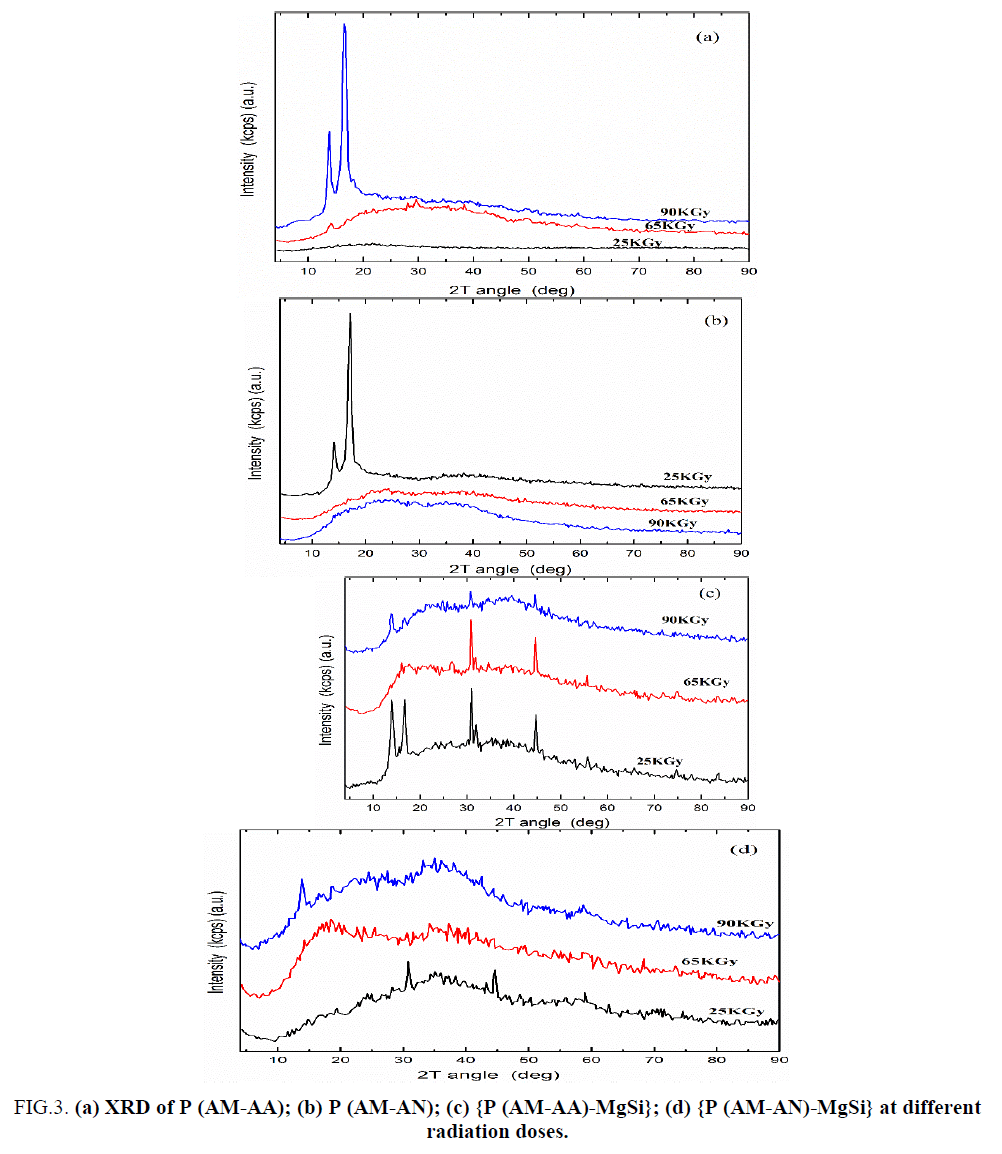

Figure 3: (a) XRD of P (AM-AA); (b) P (AM-AN); (c) {P (AM-AA)-MgSi}; (d) {P (AM-AN)-MgSi} at different radiation doses.

FIG. 3c and 3d show XRD patterns of {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites prepared at radiation doses 25, 65 and 90 KGy, respectively. From these figures it is clear that P (AM-AA)-MgSi and P (AM-AN)-MgSi have crystalline structure and these results were similar to the data obtained from XRD of polyacrylamide titanium tungstophosphate [19,42], and potassium hexacyano cobalt (II) ferrate (II) polyacrylonitrile (KCFC–PAN) [41]. In addition, the crystalline character of {P (AM-AA)-MgSi} samples were decreased with radiation dose from 25 to 90 KGy, where the samples prepared at radiation doses 25 and 65 KGy have crystalline nature, where sample prepared radiation dose 90KGy have semi crystalline nature. On the other hand, the crystalline character {P (AM-AN)-MgSi} was decreased with radiation doses from 25 to 65 KGy then increase from 65 to 90 KGy, where the sample at radiation dose 65 and 90 KGy has amorphous and semi crystalline natures, respectively.

Differential thermal and thermogravimetric analyses (DTA&TGA) play a vital role in studying the structure and the properties of any materials where it has been widely used to investigate the decomposition characteristics of materials. DTA and TGA data were used here to provide an alternative model for the kinetics of the composite degradation. For all investigation studies of the composites the rate of heating is 10°C/min [17,34,42,43], and the data were tabulated in TABLES 1 and 2.

Composite Radiation Dose, KGy Temp.,
°C
Temp. Range,
°C
Peak Peak Description Ref. Water
Loss
% Total water loss
MgSi - 128.35 43-192 Endo. Crossbedding loss of free water 1,47 16.2 33.7
- 257.2 192-283 Exo. Due to decomposition of residual OH-groups and condensation of non-bonded oxygen 48 4.45
- 501.16 283-800 Endo. The loss of chemical bond water 1,47 12.79
P (AM-AA) 25 69.29 44-125 Endo. Loss of external water molecule 49 5.95 50.2
219.88 125-240 Endo. Removal of the water of crystallization for P (AM-AA) 50 8.94
338.27 240-384 Endo. Probably caused by the dehydration of carboxylic acid and decarboxylation or the loss of chemical bond water 1,47,51 28.1
400.9 384-408 Exo. May be due to the complete decomposition of the organic part of the materials 52-54 9.87
422.28 408-500 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 14.02
65 86.6 40-137 Endo. Loss of external water molecule 49 8.6 100
219 137-253 Endo. Removal of the water of crystallization for P (AM-AA) 50 22.06
330.7 253-352 Endo. Probably caused by the dehydration of carboxylic acid and decarboxylation or the loss of chemical bond water 1,47,51 28.3
362.47 352-378 Exo. may be due to the complete decomposition of the organic part of the materials 52-54 25.64
392.56 378-500 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 51.76
90 81.69 41-129 Endo. Loss of external water in the resin 49 4.08 68.5
222.45 129-248 Endo. Removal of the water of crystallization for P (AM-AA) 50 9.79
274.7 248-311 Exo. Since the complete decomposition of the organic part of the materials 52-54 6.72
320.9 311-347 Endo. Due to dehydration of carboxylic acid and decarboxylation or the loss of chemical bond water 1,47,51 7.64
350.08 347-367 Exo. the complete decomposition of the organic part of the materials 52-54 5.5
386.55 367-398 Endo. The loss of constitution water, which forms part of the crystalline network and it is generally presented like OH groups 55-56 17.9
420.34 398-427 Exo. may be due to the complete decomposition of the organic part of the composites 52-54 8.8
476.5 427-500 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 7.87
P (AM-AN) 25 80.5 54-133 Endo. loss of external water present in the composite 49 8.21 57.07
273.15 133-328 Endo. Due to removal of the water of crystallization for P (AM-AN) copolymer 50 16.46
372.48 328-384 Exo. Due to the complete decomposition of the organic part of the materials 52-54 12.5
393.57 384-418 Endo. The loss of constitution water, which forms part of the crystalline network and it is generally presented like OH groups 55, 56 12.3
436.44 418-452 Endo. The chain scission in the main chain of poly acrylamide acrylic acid 51 5.34
465.7 452-500 Endo. 2.05
65 83.43 50-145 Endo. Loss of external water molecule 49 9.5 61.39
273.39 178-312 Endo. Removal of the water of crystallization for P (AM-AN) 50 14.3
362.8 312-367 Exo. Due to the complete decomposition of the organic part of the polymer 52-54 8.27
378.22 367-400 Endo. The loss of constitution water, which forms part of the crystalline network and it is generally presented like OH groups 55, 56 14.28
469.76 400-500 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 14.68
90 85.63 57-137 Endo. loss of external water molecule 49 4.78 25.5
240.47 137-286 Endo. removal of the water of crystallization for P (AM-AN) 50 6.04
357.41 286-416 Endo. The loss of constitution water, which forms part of the crystalline network and it is generally presented such as OH groups 55, 56 10.09
437.84 416-456 Exo. Due to the complete decomposition of the organic part of the resin 52-54 2.29
469.5 456-500 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 2.11

TABLE 1. DTA and TGA analyses for MgSi, P (AM-AA) and P (AM-AN) materials.

Composite Radiation Dose,
KGy
Temp.,
oC
Temp. Range,
oC
Peak Peak Description Ref. Water
Loss
% Total water loss
P (AM-AA)-MgSi 25 80.92 38-139 Endo. Caused by loss of external water molecule 49 9.33 100
263.72 139-313 Endo. Removal of the crystalline water for {P (AM-AA)-MgSi} 50 14.66
396.14 340-434 Exo. The complete decomposition of the organic part of the composite. 52-54 1858
434.18 434-517 Endo. Probably caused by the dehydration of carboxylic acid and decarboxylation or the loss of chemical bond water 1,47,49,51 17.71
655.6 517-800 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 40.9
65 92.17 67-164 Endo. Loss of external water molecule 49 6.48 88.34
304.5 164-355 Endo. Removal of the chemical bond water of {P (AM-AA)-MgSi} 50 22.45
375.15 355-409 Exo. The complete decomposition of the organic part of the composite resin 52-54 12.18
429.19 409-455 Exo. 7.01
521.19 455-563 Exo. 37.38
90 80.8 42-171 Endo. Loss of free water molecule 49 6.6 88.8
240.16 171-318 Endo. Removal of the crystalline water for {P (AM-AA)-MgSi} 50 14.32
380.33 318-407 Exo. The complete decomposition of the organic part of the composite ion exchangers 52-54 19.85
420.55 407-431 Endo. Due to loss of chemical bond water 1,47 3.35
444.05 431-467 Exo. May be due to the complete decomposition of the organic part of the materials 52-54 5.88
503.78 467-800 Exo. 38.64
P (AM-AN)-MgSi 25 76.26 57-132 Endo. Loss of water molecule 49 8.77 74.2
281.69 132-340 Endo. Removal of the water of crystallization for {P (AM-AN)-MgSi} 50 13.11
372.13 340-398 Exo. The complete decomposition of the organic part of the composites 52-54 9.97
419.69 398-433 Endo. The loss of interstitial water molecules 1,47 4.78
515.58 434-577 Exo. May be due to the complete decomposition of the organic part of the materials 52-54 32.49
585.56 577-800 Endo. The chain scission in the main chain of poly acrylamide acrylic acid. 51 4.45
65 76.24 40-124 Endo. Loss of free water molecule 49 8.85 80.8
263.51 124-334 Endo. Removal of the water bind molecules of {P (AM-AN)-MgSi} 50 14.33
362.72 334-383 Exo. The complete decomposition of the organic part of the ion exchange materials 52-54 8.31
398.57 383-402 Endo. The loss of chemical bond water 1,47 2.86
448.38 402-472 Exo. May be due to the complete decomposition of the organic part of the materials 52-54 8.87
521.29 472-800 Exo. 37.44
90 76.11 55-126 Endo. Loss of non-bonded water molecule 49 7.29 83.9
272.63 126-326 Endo. Removal of the water of crystallization for {P (AM-AN)-MgSi} 50 14.3
365.2 326-397 Exo. may be due to the complete decomposition of the organic part of the materials 52-54 12.73
421.29 397-452 Endo. The loss of chemical bond water 1,47 7.88
527.2 452-800 Exo. The complete decomposition of the organic part of the composite materials 52-54 41.2

TABLE 2. DTA and TGA analyses for {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composite materials. Composite

TABLE 1 was represented the data obtained for DTA and TGA analyses for inorganic ion exchange material MgSi and organic polymers P (AM-AA) and P (AM-AN) radiated at different radiation doses 25, 65 and 90 KGy. The data obtained are supporting the fact that MgSi have a good thermal stability comparing with the other inorganic ion exchangers and the weight loss of MgSi when the sample calcinated at 800 °C equal to 33.4% [1].

DTA and TGA of P (AM-AA) and P (AM-AN) copolymers prepared at radiation doses 25, 65 and 90 KGy were represented in TABLE 1 and indicates the process was occurring via five stage process and the weight loss are continued up to 500°C. The weight loss for P (AM-AA) and P (AM-AN) prepared at radiation doses 25, 65 and 90 KGy with the heating temperature indicates that a (67.15%, 100% and 68.3%) for P (AM-AA) and (56.98%, 61.3% and 25.5%) for P (AM-AN) when the samples are calcinated at 500°C [19] (TABLE 3).

Composite Radiation Dose, KGy Concentration, %
Si Mg
MgSi ---- 18.7 37.7
P (AM-AA)-MgSi 25 10.1 21.2
65 11.6 25.6
90 8.3 44.7
P (AM-AN)-MgSi 25 13.3 44.7
65 12.9 47.6
90 13.5 45.2

TABLE 3. Elemental analysis of magneso-silicate and polymeric composites based on silicate prepared at different radiation doses

The DTA and TGA analyses for polymeric materials impregnated with inorganic ion exchange materials, {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} prepared at different radiation doses 25, 65 and 90 KGy were measured and tabulated in TABLE 2. The data in TABLE 2 indicates that the process for {P (AM-AA)-MgSi} composite was occurring via four stage process at radiation doses 25 and 90 KGy, where five stage process at radiation doses 65 KGy. On the other hand, the process for {P (AM-AN)-MgSi} prepared at radiation doses 25, 65 and 90 KGy was ocurrs via four stage process. Also, the data supporting the fact that {P (AM-AA)-MgSi} composites prepared at radiation doses 25, 65 and 90KGy have a good thermal stability comparing with the other inorganic ion exchangers. The weight losses of {P (AM-AA)-MgSi} composites prepared at radiation doses 25, 65 and 90 KGy with the heating temperature equal 100%, 88.34% and 88.8% when the samples are calcinated at 800 °C. also, TABLE 2 indices that, the weight loss for {P (AM-AN)-MgSi} prepared at radiation doses 25, 65 and 90KGy are continued up to 600°C, and no weight loss occurred in the range ~600-800°C. This supporting the fact that {P (AM-AN)-MgSi} prepared at radiation doses 25, 65 and 90KGy have a good thermal stability comparing with the other inorganic ion exchangers. The weight losses of {P (AM-AN)-MgSi} prepared at radiation doses 25, 65 and 90 KGy with the heating temperature equal to 74.2%, 80.8% and 83.9% when the sample is calcinated at 800°C [1,19].

The elemental analyses of magneso-silicate and polymeric composites based on silicate prepared at different radiation doses were measured using XRF and tabulated in TABLE 3; the measured data is confirmed that impregnation of magneso-silicate in the {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} [44,45].

Conclusion

Magneso-silicate (MgSi) has been synthesized by precipitation technique. P (AM-AA), P (AM-AN), {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} composites have been synthesized by subjected co-monomers to gamma radiation initiated polymerization at radiation doses 25, 65 and 90 KGy. From the data obtained from the analytical techniques such as IR, XRD, TGA, DTA and XRF it is indicating that the impregnation of MgSi in {P (AM-AA)-MgSi} and {P (AM-AN)-MgSi} show an improvement in thermal stability and these composite materials have crystalline nature suitable for column chromatographic applications [46-57].

References
